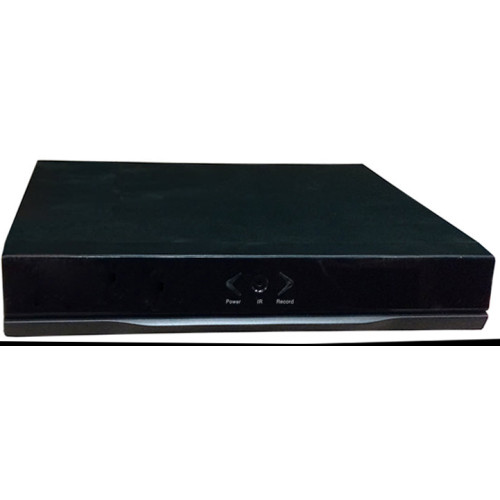

• SEETECH ST-1016P 1080P AHD 16 KANAL 2HDD AHD DVR KAYIT CİHAZI

System

Main processor

Technical grade embedded microprocessor Hi3531A,Embedded LINUX operating system



Display screen

1/4/8/9/16 screen (take analog channel as an example, other is base on the selected channel mode)

video

Video standard

PAL(625 lines,50fps);NTSC(525lines,60fps)



Monitor quality

VGA:HD;HDMI:HD



Encode capability

Local analog input:16*1080P; 16*1080N;

Local analog + network digital input:8*1080P(analog)+8*1080P(ip);

All network digital input:8*1080P+8*960P; 8*3M ;4*5M



Decode capability

1*1080P



Motion detection

Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)

playback

Record mode

manual>alarm>motion detection>timing



Local playback

16CH playback



Video search

time,date,event,channel search

Record

Space occupation

720P 20G/day;960H 12~20G/day*ch; audio:691.2M/day*ch



Video storage

Local HDD ,Network



Back  up mode

Network backup,USB portable HDD,USB imprint,

port

Video input

16ch BNC



Video output

1ch VGA,1ch HDMI(support1920*1080P)



Audio input

2ch



Audio output

1ch



Alarm input

NO



Alarm input

NO



Network port

RJ45 10M/100M self-adaptive Ethernet port



PTZ control

1 RS485;support multi kinds of PTZ protocol

SEETECH ST-1016P 1080P AHD 16 KANAL 2HDD AHD DVR KAYIT CİHAZI

  • Brand: SEETECH
  • Product Code: ST-1016DVR
  • Availability: 100
  • $211.86


Tags: dvr, kayıt, cihazı, 8, 16, 4, 32, 64, , li, , lu, ahd, kamera, analog, seetech
